What's it for? ph1]To meet the most specific needs, we provide a catalog of widgets.
These widgets can be combined as you see fit to keep only those that interest you.
Prerequisites
To view this page, you must be an Eficia customer and ask your Eficia project manager to activate this page. ph7]Some widgets require the Eficia PLC solution. ph8]How to access them?
Site monitoring > Dashboard > Monthly report
Fleet monitoring > Dashboard > Monthly report
Widgets

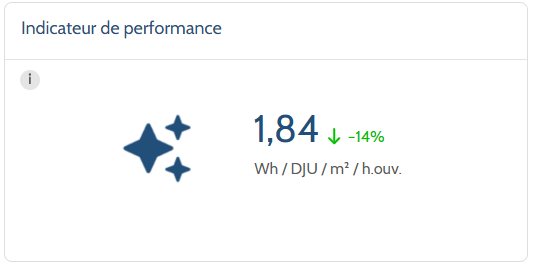

Performance indicator - Last month
The performance indicator is a ratio that excels at comparing energy performance between sites or groups of sites. It is calculated over one month and compared with the previous month.
A site with a low performance indicator will be considered more energy efficient than a site with a high performance indicator. ph25]On this ratio we find:
-Wh: Consumption of the site or group of sites
-UDD : Unified degree days. These take into account heating or cooling requirements as a function of the site's outside temperature. This component makes it easier to compare sites with different locations and climates.
-m2 : The surface area is used to normalize consumption according to the surface area of the site. ph35]-opening hours : Opening hours are used to normalize consumption according to the occupancy rate of the site. Opening hours are defined according to PLC data.

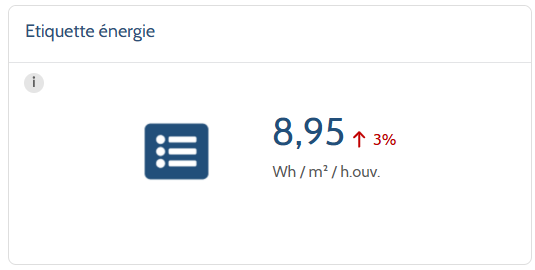

Energy label - Last month
The energy label is a ratio that allows comparison of energy performance between sites or groups of sites. It is calculated over one month and compared with the previous month.
A site with a low label will be considered more energy efficient than a site with a high performance indicator.
This ratio is:
-Wh : Consumption of the site or group of sites. ph50]-m2 : The surface area is used to normalize consumption according to the surface area of the site. ph53]-opening hours : Opening hours are used to normalize consumption according to the site's occupancy rate. Opening hours are defined according to PLC data.

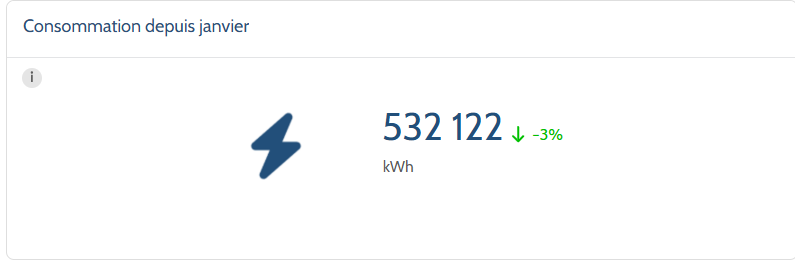

Power consumption - Year-to-date
This is the power consumption of the site or group of sites since the beginning of the year.

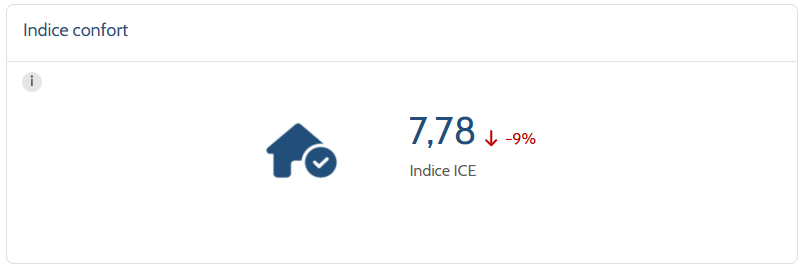

ICE comfort index
The Eficia ICE comfort index is an indicator in the form of a score out of ten that allows you to simply assess the comfort of a site controlled by Eficia.
This indicator is calculated on the basis of data measured on site. The data taken into account are :
- Indoor temperature
- Outdoor temperature
- Humidity
- Carbon dioxide (CO2)

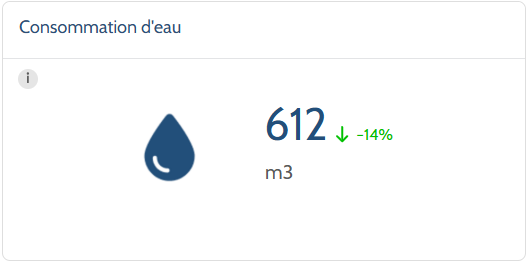

Water consumption - last 30 days
This is water consumption in m3 over the last 30 days compared with the previous 30 days.

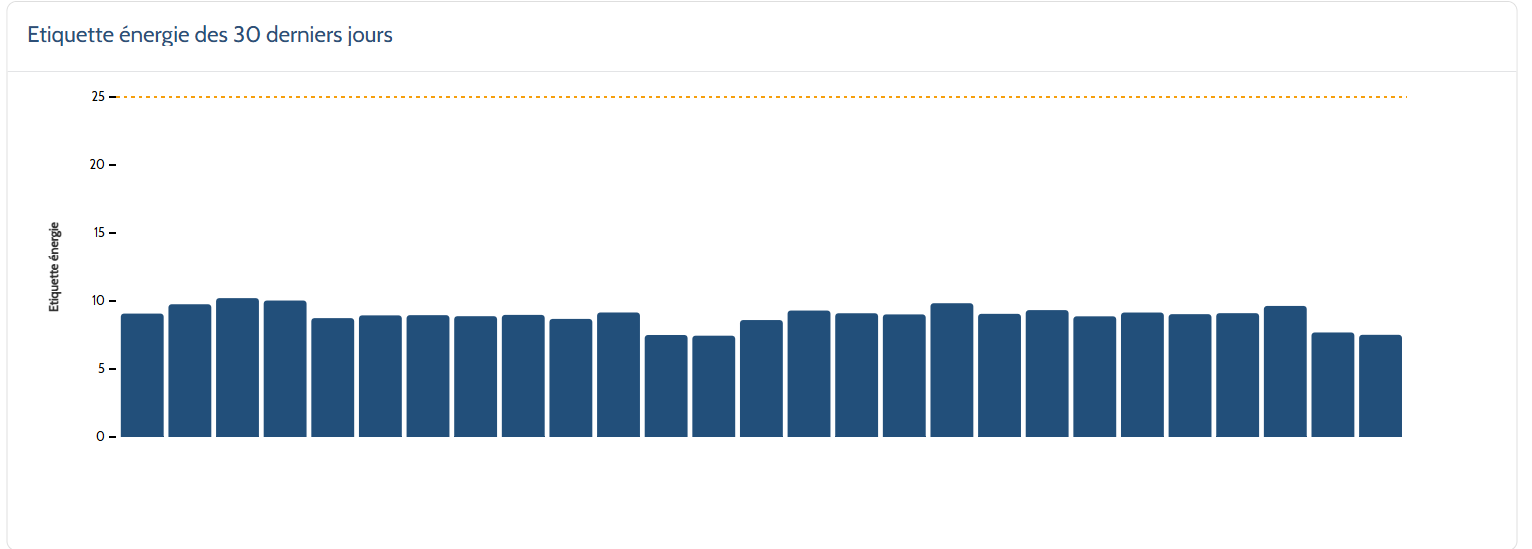

Energy label - last 30 days

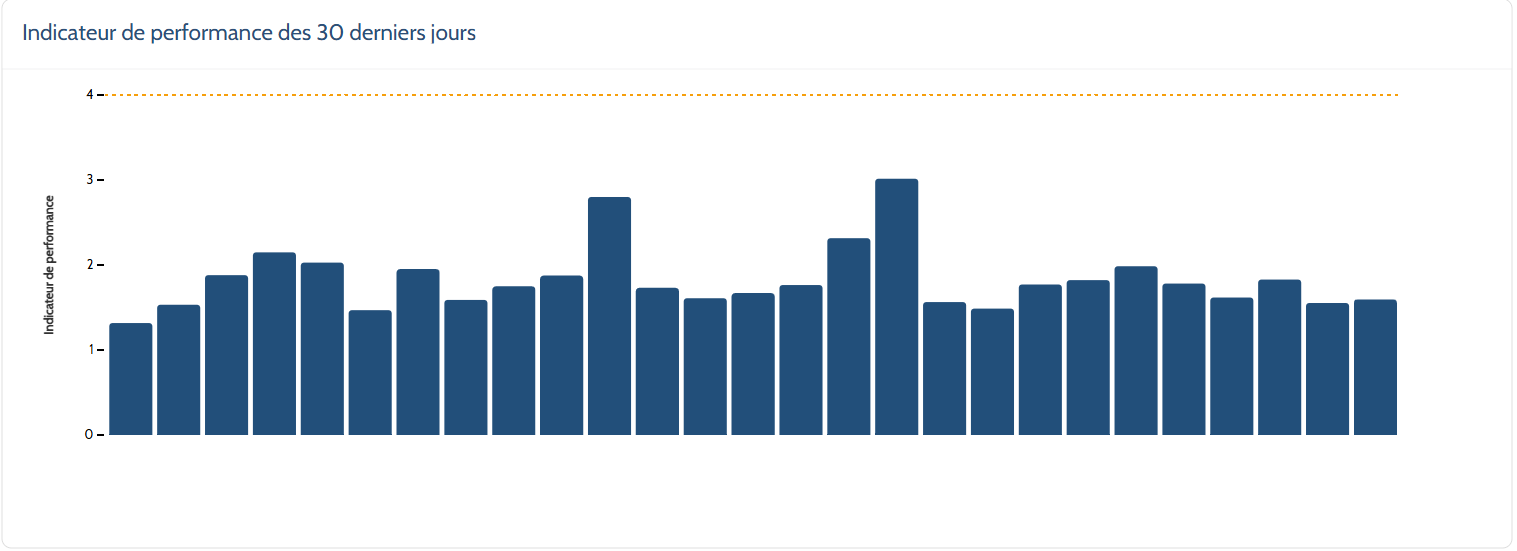

Performance indicator - last 30 days

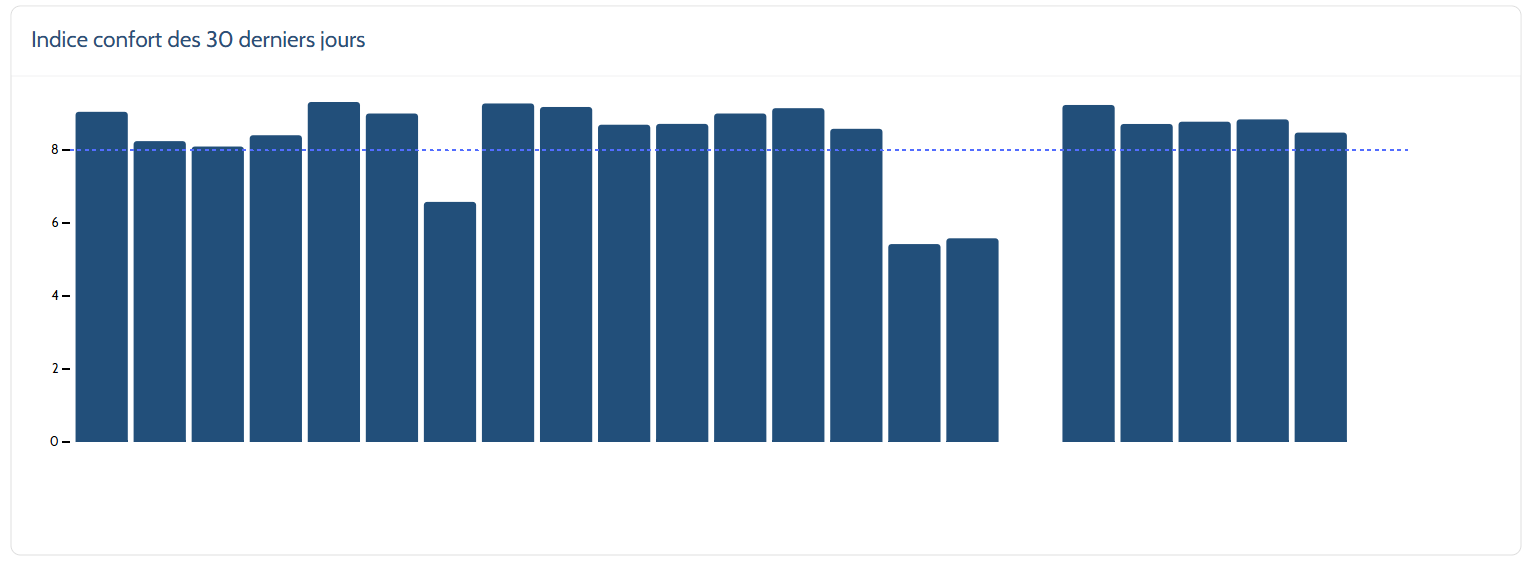

ICE comfort index - last 30 days
Frequently asked questions
Can I create my own widgets?
If you have a specific need, you can submit it to Eficia. The request will be studied by our teams.
